Adjustable positive buck DC/DC controller and regulator IC, delivering up to 2A output current. Features a wide input voltage range from 3.6V to 36V, with an adjustable output voltage up to 20V. Operates efficiently across a temperature range of -40°C to 125°C. Packaged in a compact 10-MSOP with dimensions of 3mm x 3mm x 0.7mm. RoHS compliant.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LT3685IMSE#PBF technical specifications.
General
Package/Case
MSOP
Height
0.7mm
Length
3mm
Max Input Voltage
36V
Min Input Voltage
3.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
20V
Min Output Voltage
790mV
Number of Outputs
1
Output Configuration
Positive
Output Current
2A
Output Type
Adjustable
Output Voltage
20V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3685IMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3685IMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

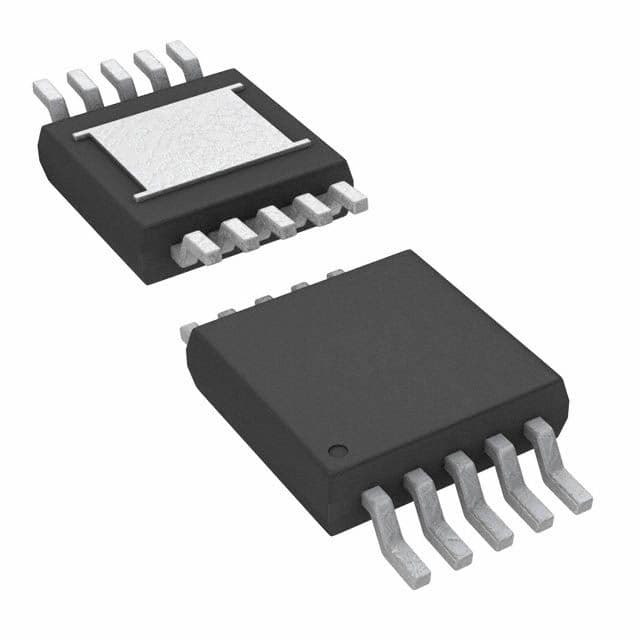

Product Images
