Adjustable DC/DC buck controller with 3.5A maximum output current. Features a wide input voltage range from 3.6V to 36V and an adjustable output voltage up to 30V. Operates efficiently with a maximum output current of 3.5A. Housed in a compact 10-MSOP package with dimensions of 2.79mm length, 2.083mm width, and 0.86mm height. Suitable for applications requiring stable power conversion across a broad temperature range of -40°C to 125°C. RoHS compliant.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LT3693EMSE#PBF technical specifications.
General
Package/Case
MSOP
Height
0.86mm
Length
2.79mm
Max Input Voltage
36V
Min Input Voltage
3.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3.5A
Max Output Voltage
30V
Min Output Voltage
790mV
Number of Outputs
1
Output Current
3.5A
Output Type
Adjustable
Output Voltage
30V
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Width
2.083mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3693EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3693EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

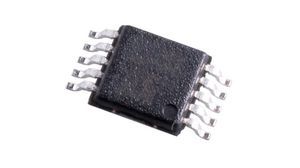

Product Images
