High-efficiency DC/DC buck controller IC, operating from a 6V to 36V input range, delivers up to 20A output current. Features a maximum switching frequency of 1.07MHz and a maximum output voltage of 34V, achieving up to 94% efficiency. Packaged in a 20-pin TSSOP with dimensions of 6.6mm length, 4.5mm width, and 1.05mm height, this RoHS compliant component operates across a -40°C to 125°C temperature range.
Frequency1.07MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices LT3741EFE#PBF technical specifications.
General
| Package/Case | TSSOP |
| Efficiency | 94% |
| Height | 1.05mm |
| Length | 6.6mm |
| Max Frequency | 1.07MHz |
| Max Input Voltage | 36V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20A |
| Max Output Voltage | 34V |
| Min Output Voltage | 0V |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 6V |
| Number of Outputs | 1 |
| Output Current | 20A |
| Output Type | Fixed |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3741EFE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3741EFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

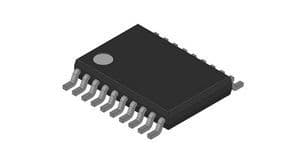

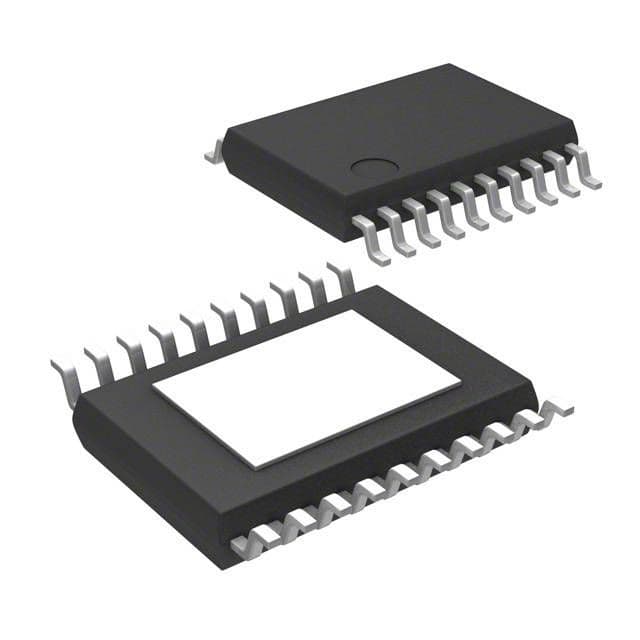

Product Images
