High-performance LED driver controller IC featuring a 1MHz switching frequency. This power management IC supports buck-boost and SEPIC topologies, delivering up to 370mA output current with a 100V output voltage capability. Operating across a wide input voltage range of 6V to 100V, it is housed in a compact 16-MSOP package. Designed for efficient operation, it exhibits a low maximum supply current of 5µA and operates reliably within a temperature range of -40°C to 125°C.
Frequency1MHz
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LT3756EMSE-2#PBF technical specifications.
General
| Package/Case | MSOP |
| Frequency | 1MHz |
| Height | 0.86mm |
| Length | 4.04mm |
| Max Input Voltage | 100V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 5uA |
| Max Supply Voltage | 100V |
| Min Supply Voltage | 6V |
| Number of Outputs | 1 |
| Number of Segments | 18 |
| Output Current | 370mA |
| Output Voltage | 100V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Buck-Boost, SEPIC |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3756EMSE-2#PBF Datasheet
Download the complete datasheet for Analog Devices LT3756EMSE-2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

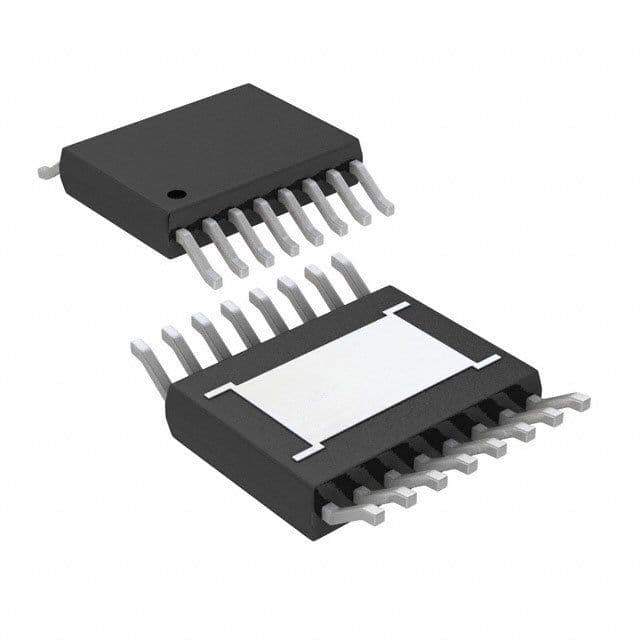

Product Images
