1MHz DC/DC LED driver controller IC with a 6V to 60V input voltage range and a maximum output voltage of 55V. Features a single output capable of 20A, operating within a -40°C to 125°C temperature range. Packaged in a 28-pin TSSOP, this lead-free component is RoHS compliant.
Frequency1MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices LT3763IFE#PBF technical specifications.
General
| Package/Case | TSSOP |
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 60V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 6V |
| Number of Outputs | 1 |
| Output Current | 20A |
| Output Voltage | 55V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3763IFE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3763IFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

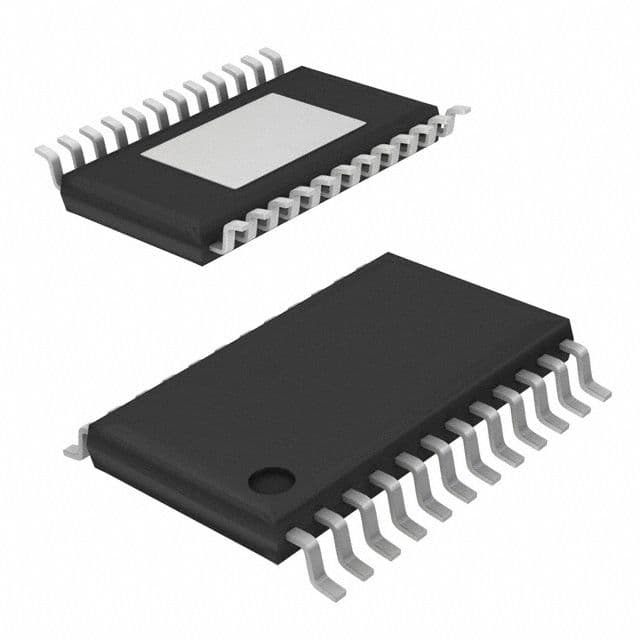

Product Images
