Adjustable DC/DC controller and regulator IC with a maximum input voltage of 80V and a minimum of 5V. Features a maximum output voltage of 84V and a maximum output current of 3.3A, supporting Boost, Flyback, and SEPIC topologies. Operates across a temperature range of -40°C to 125°C and is housed in a 5mm x 5mm x 5mm QFN package. This RoHS compliant component offers a single adjustable output.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LT3958EUHE#PBF technical specifications.
General
| Package/Case | QFN |
| Height | 5mm |
| Length | 5mm |
| Max Input Voltage | 80V |
| Min Input Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.3A |
| Max Output Voltage | 84V |
| Number of Outputs | 1 |
| Output Current | 3.3A |
| Output Type | Adjustable |
| Output Voltage | 80V |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Boost, Flyback, SEPIC |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3958EUHE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3958EUHE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

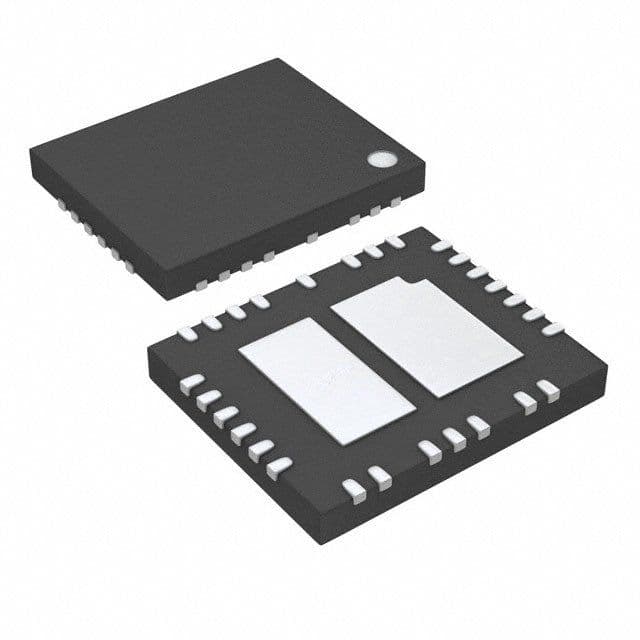

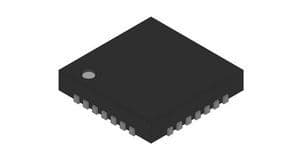

Product Images
