The LT3970EDDB-3.42#TRMPBF is a DC/DC controller from Analog Devices with a fixed output voltage of 3.42V and an output current of 350mA. It operates within a temperature range of -40°C to 125°C and is packaged in a DFN package. The device is available in quantities of 500 and is supplied on tape and reel.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3970EDDB-3.42#TRMPBF technical specifications.
General
| Package/Case | DFN |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 350mA |
| Output Type | Fixed |
| Output Voltage | 3.42V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3970EDDB-3.42#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3970EDDB-3.42#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

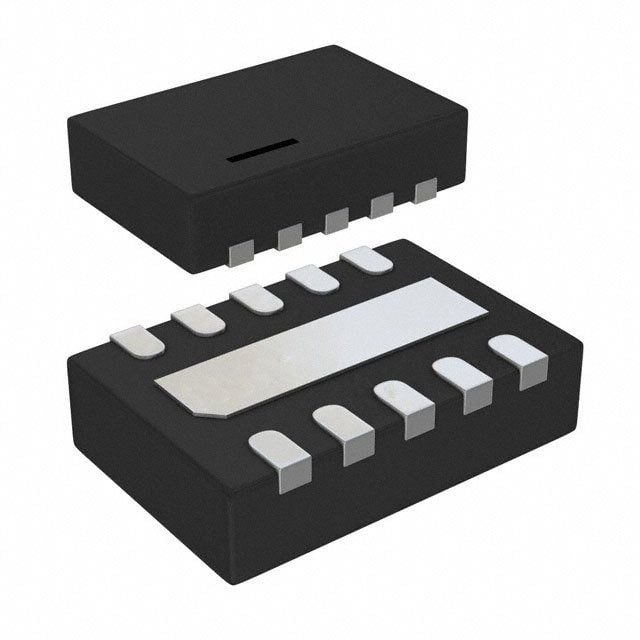

Product Images
