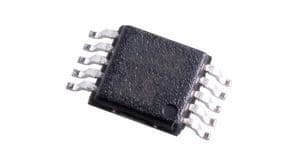

Adjustable DC/DC buck controller IC with a maximum output current of 3.5A. Features a wide input voltage range from 3.6V to 33V and an adjustable output voltage up to 30V. Operates efficiently with a 3.5A output current and a minimum output voltage of 790mV. Housed in a compact 10-MSOP package with dimensions of 2.79mm (L) x 2.083mm (W) x 0.86mm (H). Suitable for operation across a broad temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LT3972EMSE#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices LT3972EMSE#PBF technical specifications.
| Package/Case | MSOP |
| Height | 0.86mm |
| Length | 2.79mm |
| Max Input Voltage | 33V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Max Output Voltage | 30V |
| Min Output Voltage | 790mV |
| Number of Outputs | 1 |
| Output Current | 3.5A |
| Output Type | Adjustable |
| Output Voltage | 30V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 2.083mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices LT3972EMSE#PBF to view detailed technical specifications.
