Adjustable 2A DC/DC buck controller in a 16-MSOP package. Features a wide 3.6V to 58V input voltage range and delivers up to 2A output current. Operates from -40°C to 125°C with an adjustable output voltage up to 55.1V. RoHS compliant.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LT3980EMSE#PBF technical specifications.
General
| Package/Case | MSOP |
| Height | 0.86mm |
| Length | 4.04mm |
| Max Input Voltage | 58V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 55.1V |
| Min Output Voltage | 800mV |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 52.2V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3980EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3980EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

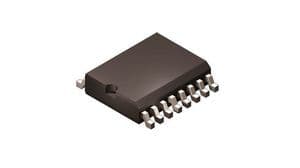

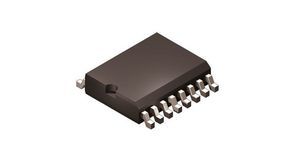

Product Images
