Overvoltage protection regulator IC in a DFN package. Features a 27V clamping voltage and 1.5mA clamping current. Operates with a supply voltage range of 4V to 80V, with a maximum working voltage of 80V. Designed for a temperature range of -40°C to 85°C. RoHS compliant.
PackageDFN
Voltage Rating80V
Quick Jump:
Technical Specifications
Analog Devices LT4356IDE-1#PBF technical specifications.
General
| Package/Case | DFN |
| Clamping Current | 1.5mA |
| Clamping Voltage | 27V |
| Depth | 3mm |
| Height | 0.75mm |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 80V |
| Min Supply Voltage | 4V |
| Number of Circuits | 1 |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3mm |
| Working Voltage | 80V |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT4356IDE-1#PBF Datasheet
Download the complete datasheet for Analog Devices LT4356IDE-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

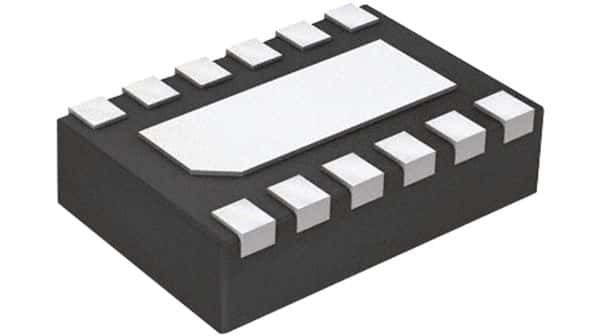

Product Images
