High-voltage surge stopper IC designed for power management applications. Features a clamping voltage of 27V and a maximum supply voltage of 80V, operating within a 4V to 80V range. Housed in a compact 12-MSOP package with dimensions of 4.04mm length, 3mm width, and 0.86mm height. Offers a supply current of 700uA and operates across a temperature range of -40°C to 85°C. This RoHS compliant component is suitable for applications requiring robust overvoltage protection.
PackageMSOP
Current700uA
Voltage Rating80V
Quick Jump:
Technical Specifications
Analog Devices LT4363IMS-2#PBF technical specifications.
General
| Package/Case | MSOP |
| Clamping Voltage | 27V |
| Height | 0.86mm |
| Lead Free | Lead Free |
| Length | 4.04mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 80V |
| Min Supply Voltage | 4V |
| Number of Circuits | 1 |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 700uA |
| Width | 3mm |
| Working Voltage | 80V |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT4363IMS-2#PBF Datasheet
Download the complete datasheet for Analog Devices LT4363IMS-2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

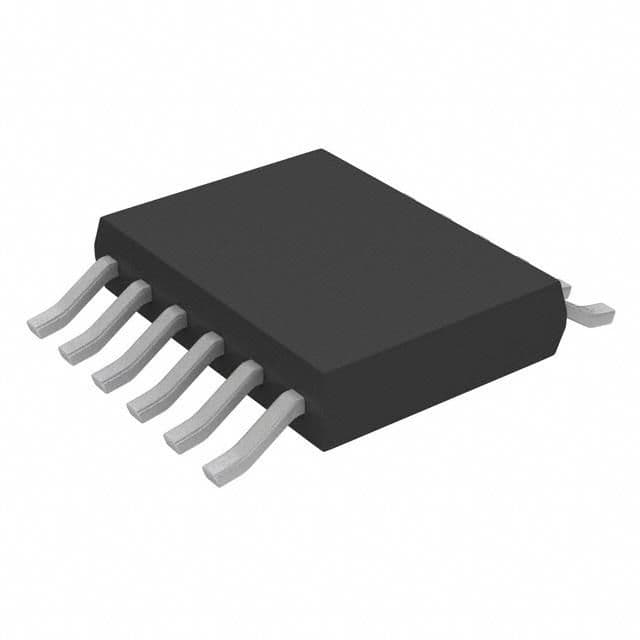

Product Images
