Downconverting mixer IC operating from 400MHz to 3.7GHz with a 3.3GHz bandwidth. Features 2.3dB gain and a 12.5dB noise figure. Surface mountable in a QFN package with dimensions of 4mm x 4mm x 0.7mm. Operates with a 5V supply voltage and has a maximum operating temperature of 85°C. RoHS compliant and lead-free.
Frequency400MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LT5527EUF#PBF technical specifications.
General
Bandwidth
3.3GHz
Package/Case
QFN
Frequency
400MHz
Gain
2.3dB
Height
0.7mm
Lead Free
Lead Free
Length
4mm
Max Frequency
3.7GHz
Min Frequency
400MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.5V
Mount
Surface Mount
Noise Figure
12.5dB
Nominal Supply Current
78mA
Operating Supply Current
88mA
Operating Supply Voltage
5V
Package Quantity
91
Packaging
Rail/Tube
Power Gain
3.4dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
LT5527
Thickness
750um
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT5527EUF#PBF Datasheet
Download the complete datasheet for Analog Devices LT5527EUF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

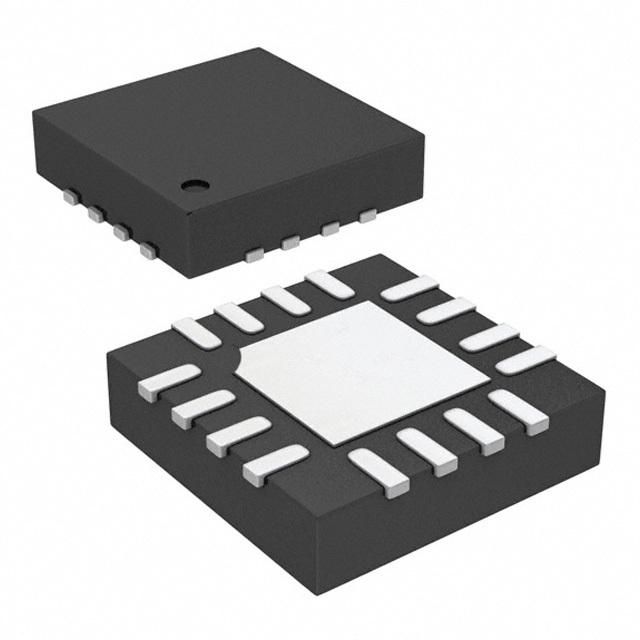

Product Images
