RF detector IC operating from 10MHz to 1000MHz, featuring a 22dBm input power handling capability. This component is housed in a compact 8-pin DFN EP package, measuring 3mm in length, 2mm in width, and 750µm in thickness. It operates with a nominal supply current of 13.5mA and a maximum operating current of 15mA. The device is lead-free and RoHS compliant, supplied in tape and reel packaging.
Frequency10MHz
PackageDFN EP
Quick Jump:
Technical Specifications
Analog Devices LT5537EDDB#TRMPBF technical specifications.
General
Package/Case
DFN EP
Frequency
10MHz
Lead Free
Lead Free
Length
3mm
Nominal Supply Current
13.5mA
Operating Supply Current
15mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Thickness
750um
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT5537EDDB#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT5537EDDB#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

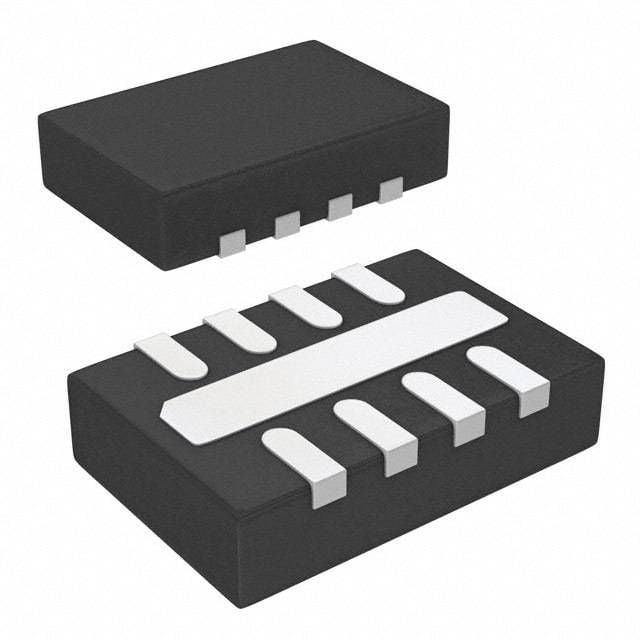

Product Images
