High-precision current sense amplifier featuring a single amplifier channel. Boasts a 100kHz -3dB bandwidth and a 2V/µs slew rate. Operates with a supply voltage range of 2.85V to 36V and offers a typical supply current of 240µA. Achieves excellent signal integrity with a 94dB Common Mode Rejection Ratio and 98dB Power Supply Rejection Ratio. Housed in an 8-pin MSOP package, suitable for operation between 0°C and 70°C.
PackageMSOP
Current200uA
Quick Jump:
Technical Specifications
Analog Devices LT6105CMS8#PBF technical specifications.
General
| -3db Bandwidth | 100kHz |
| Bandwidth | 100kHz |
| Package/Case | MSOP |
| Common Mode Rejection Ratio | 94dB |
| Input Offset Voltage (Vos) | 300uV |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2.85V |
| Nominal Gain Bandwidth Product | 100kHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 240uA |
| Output Current per Channel | 1mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 98dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 2V/µs |
| Supply Current | 200uA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT6105CMS8#PBF Datasheet
Download the complete datasheet for Analog Devices LT6105CMS8#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

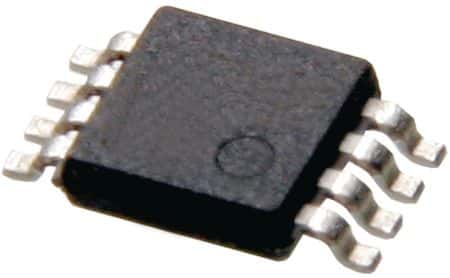

Product Images
