Technical Specifications
Analog Devices LT6700HVIS6-2#TRMPBF technical specifications.
General
Package/Case
S
Hysteresis
11.5mV
Input Bias Current
10nA
Input Offset Voltage (Vos)
6mV
Max Input Current
10nA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
1.4V
Number of Channels
2
Number of Elements
2
Package Quantity
500
Packaging
Tape and Reel
Propagation Delay
29us
Quiescent Current
17uA
RoHS Compliant
Yes
Series
Over-The-Top®
Supply Current
11uA
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT6700HVIS6-2#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT6700HVIS6-2#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

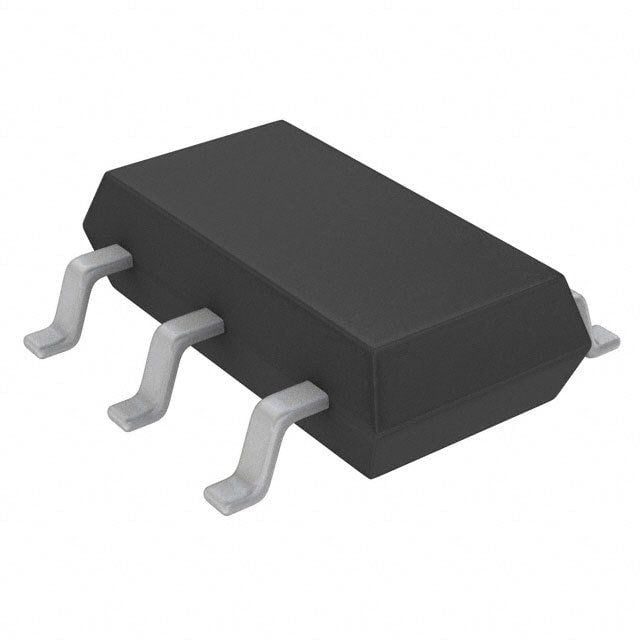

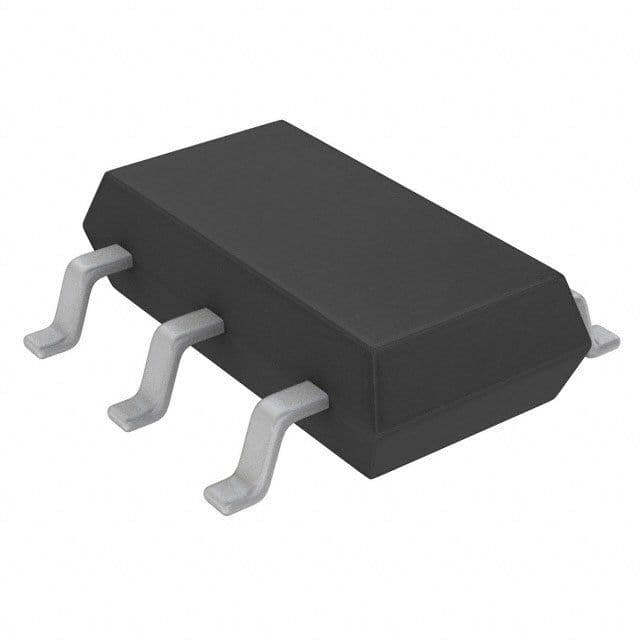

Product Images
