Dual-output adjustable DC/DC controller IC with 2.5V to 22V input voltage range. Features independent outputs capable of 1.7A and 1.3A respectively, with a combined output current of 3.3A. Supports adjustable output voltages up to 42V per channel. Operates across a wide temperature range of -40°C to 125°C. Suitable for Boost, Flyback, SEPIC, and Cuk topologies. Packaged in a DFN format, this RoHS compliant component is designed for efficient power management.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT8582IDKD#PBF technical specifications.
General
| Package/Case | DFN |
| Current - Output 1 | 1.7A |
| Current - Output 2 | 1.3A |
| Lead Free | Lead Free |
| Max Input Voltage | 22V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 42V |
| Min Output Voltage | 2.5V |
| Number of Outputs | 2 |
| Output Current | 3.3A |
| Output Type | Adjustable |
| Output Voltage | 42V |
| Package Quantity | 52 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Boost, Flyback, SEPIC, Cuk |
| Voltage - Output 1 | 42V |
| Voltage - Output 2 | 42V |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT8582IDKD#PBF Datasheet
Download the complete datasheet for Analog Devices LT8582IDKD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

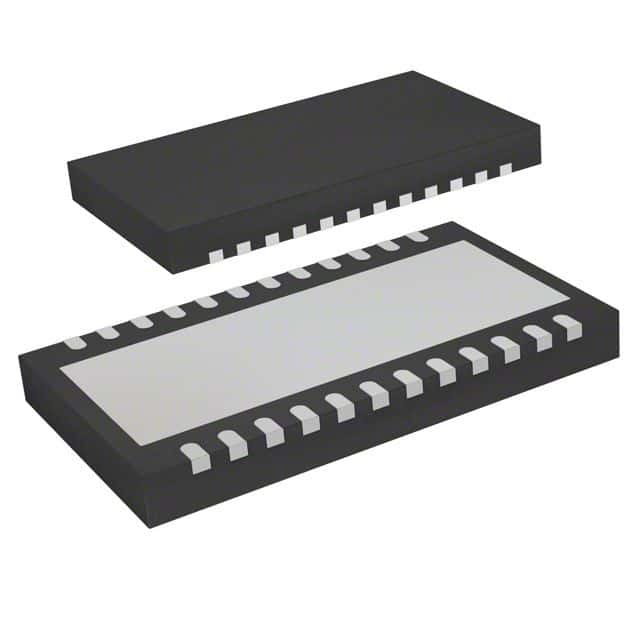

Product Images
