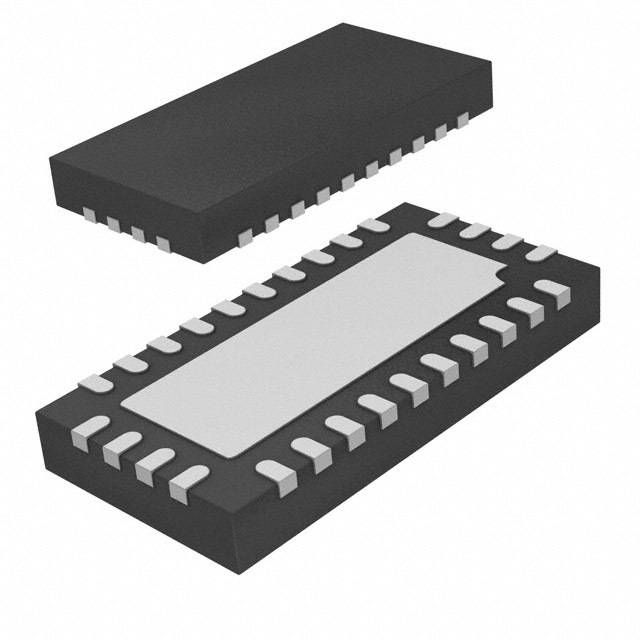

High-efficiency 6A synchronous buck converter with adjustable output voltage from 0.97V to 41.6V. Features a wide input voltage range of 3.4V to 42V and operates at a 2.2MHz switching frequency. This power management IC offers a single positive output and is designed for operation across a -40°C to 125°C temperature range. Packaged in a 28-lead QFN, it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LT8612IUDE#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Max Input Voltage | 42V |
| Min Input Voltage | 3.4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 41.6V |
| Min Output Voltage | 970mV |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 6A |
| Output Type | Adjustable |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices LT8612IUDE#PBF to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
