High-efficiency, 98% buck-boost DC/DC controller IC with adjustable positive output up to 25A. Features include synchronous rectification, clock synchronization, and a wide operating temperature range of -40°C to 125°C. Designed for a minimum input voltage of 2.8V, this integrated circuit offers two output phases and is supplied in a 38-pin TSSOP package on tape and reel.
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LT8705EFE#TRPBF technical specifications.
General
| Package/Case | SOP |
| Clock Sync | Yes |
| Efficiency | 98% |
| Min Input Voltage | 2.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Output Phases | 2 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 25A |
| Output Type | Adjustable |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT8705EFE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT8705EFE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

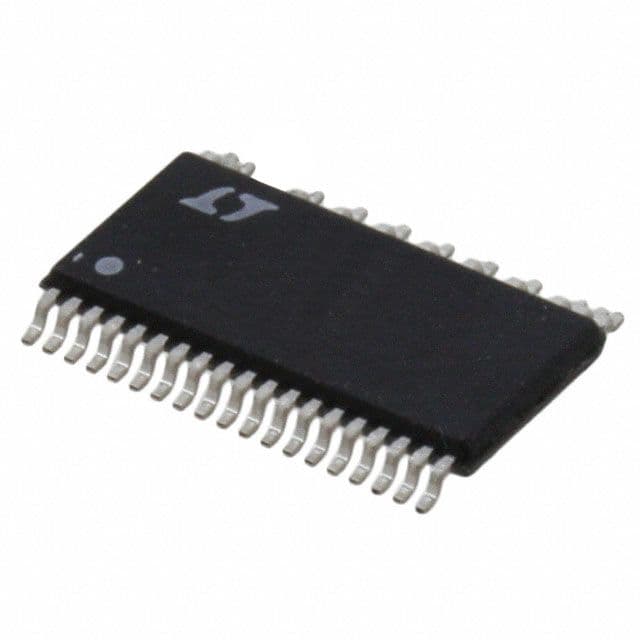

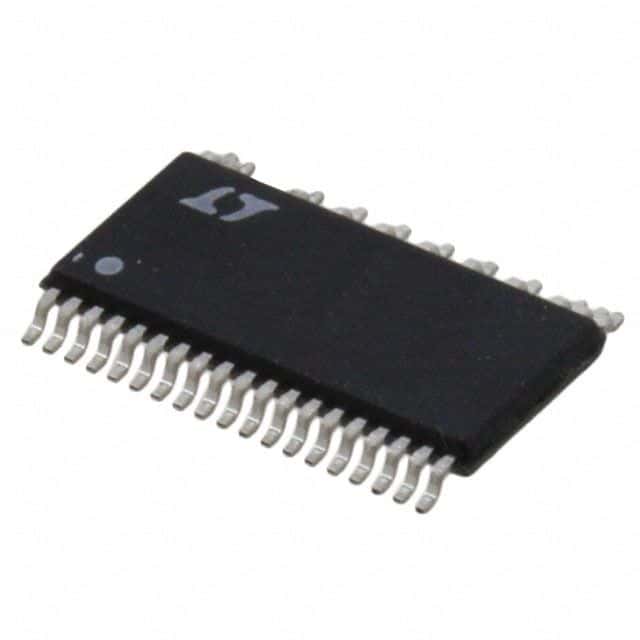

Product Images
