High-performance DC/DC controller IC featuring a buck-boost topology. Supports a wide input voltage range from 2.8V to 80V, delivering a positive output current of up to 25A. Integrated synchronous rectification and clock synchronization enhance efficiency. Operates across a temperature range of -40°C to 125°C, housed in a 38-pin TSSOP package.
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices LT8705IFE#PBF technical specifications.
General
| Package/Case | TSSOP |
| Clock Sync | Yes |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 80V |
| Min Supply Voltage | 2.8V |
| Number of Output Phases | 2 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 25A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT8705IFE#PBF Datasheet
Download the complete datasheet for Analog Devices LT8705IFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

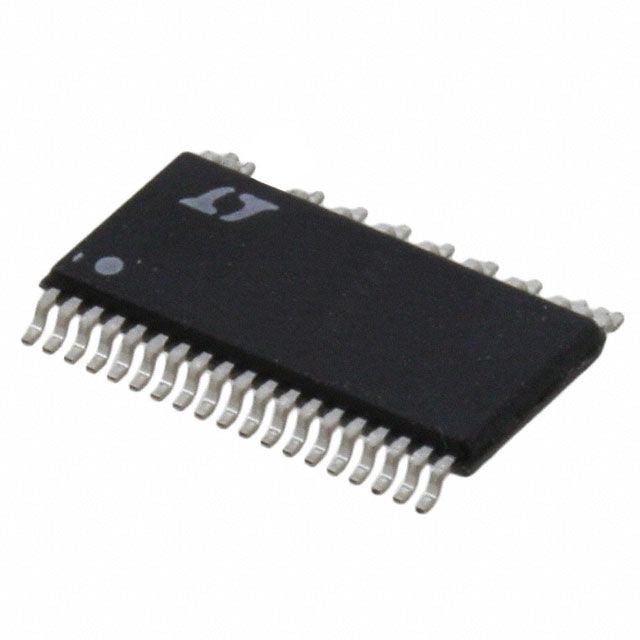

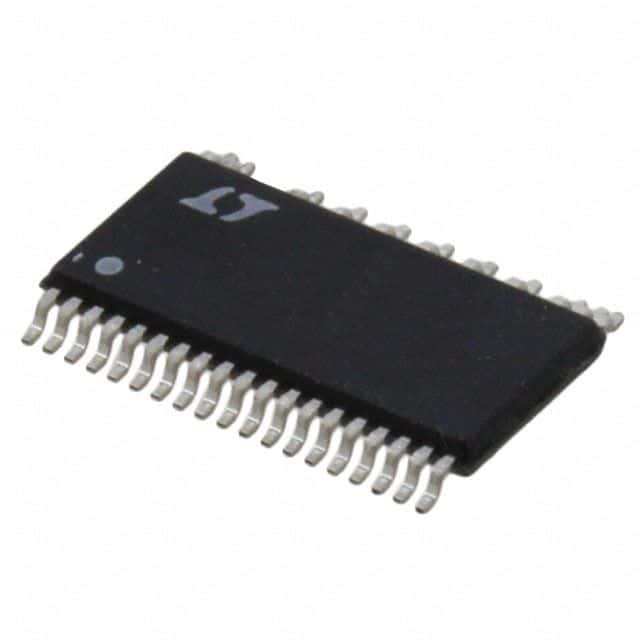

Product Images
