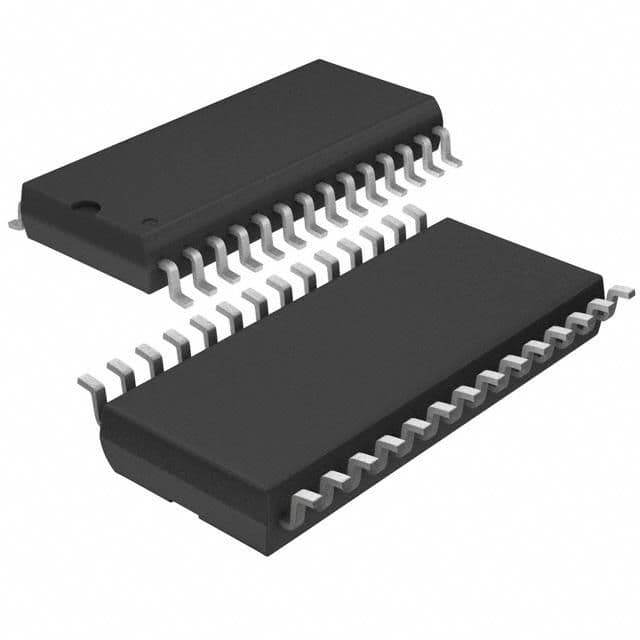

Multiprotocol transceiver IC supporting RS-232, RS-485, and RS-422 interfaces. Features 3 transmitters and 3 receivers, with 1 transceiver. Operates from a 5V supply voltage (4.75V to 5.25V) and has a maximum supply current of 25mA. Packaged in a 1000-piece tape and reel, this surface mount SOIC component is lead-free and RoHS compliant, suitable for operation between 0°C and 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LTC1334CSW#TRPBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices LTC1334CSW#TRPBF technical specifications.
| Package/Case | SOIC |
| Height | 2.642mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Receivers | 3 |
| Number of Transceivers | 1 |
| Number of Transmitters | 3 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 25mA |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices LTC1334CSW#TRPBF to view detailed technical specifications.
