Dual RS-232/RS-485 transceiver for surface mount applications. Features 2 drivers and 2 receivers, operating from a 4.75V to 5.25V supply. This component offers a 25mA maximum supply current and is RoHS compliant. Packaged in a 20-pin SSOP with dimensions of 7.5mm length, 5.6mm width, and 1.95mm height.
PackageSSOP
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC1387IG#PBF technical specifications.
General
Package/Case
SSOP
ESD Protection
No
Height
1.95mm
Interface
RS-232, RS-485
Lead Free
Lead Free
Length
7.5mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
25mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
2
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
66
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
25mA
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC1387IG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1387IG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

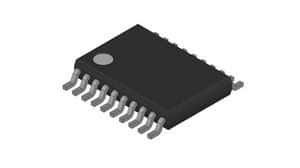

Product Images
