Single-channel comparator IC featuring a 1.182V reference. Offers 80dB Common Mode Rejection Ratio and 80dB Power Supply Rejection Ratio. Input offset voltage is 10mV with 50mV hysteresis. Operates from a 1V to 5.5V dual supply or 2V to 11V single supply. TTL output type with 20uA output current. Packaged in DFN EP, lead-free and RoHS compliant.
PackageDFN EP
Current4.4mA
Power500mW
Quick Jump:
Technical Specifications
Analog Devices LTC1440IDD#PBF technical specifications.
General
Package/Case
DFN EP
Common Mode Rejection Ratio
80dB
Hysteresis
50mV
Input Offset Voltage (Vos)
10mV
Lead Free
Lead Free
Max Dual Supply Voltage
5.5V
Min Dual Supply Voltage
1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
11V
Min Supply Voltage
2V
Number of Channels
1
Number of Elements
1
Output Current
20uA
Output Type
TTL
Package Quantity
121
Packaging
Rail/Tube
Power Dissipation
500mW
Power Supply Rejection Ratio (PSRR)
80dB
Propagation Delay
15us
Quiescent Current
4.4uA
Radiation Hardening
No
Response Time
15us
RoHS Compliant
Yes
Supply Current
4.4mA
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC1440IDD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1440IDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

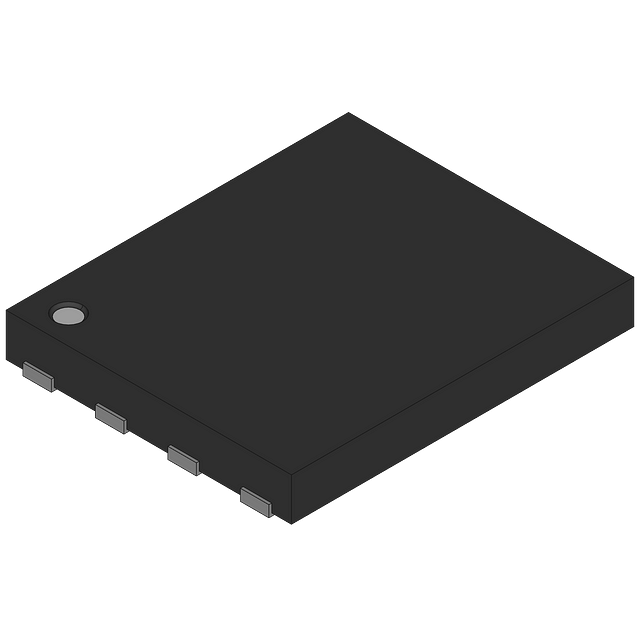

Product Images
