Precision voltage reference IC featuring a 300nA quiescent current and 12mV input offset voltage. This single-channel component offers a 3V operating supply voltage, expandable to a maximum of 11V, with a 1V to 5.5V dual supply range. Delivering 40mA output current with TTL output compatibility, it boasts 80dB common mode rejection ratio and power supply rejection ratio. Packaged in a compact 3mm x 3mm x 0.75mm DFN, this RoHS compliant device operates from -40°C to 85°C.
PackageDFN
Current300nA
Power500mW
Quick Jump:
Technical Specifications
Analog Devices LTC1540IDD#PBF technical specifications.
General
Package/Case
DFN
Common Mode Rejection Ratio
80dB
Dual Supply Voltage
3V
Height
0.75mm
Hysteresis
50mV
Input Offset Voltage (Vos)
12mV
Lead Free
Lead Free
Length
3mm
Max Dual Supply Voltage
5.5V
Min Dual Supply Voltage
1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
11V
Min Supply Voltage
2V
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
3V
Output Compatibility
CMOS
Output Current
40mA
Output Type
TTL
Package Quantity
121
Packaging
Rail/Tube
Power Dissipation
500mW
Power Supply Rejection Ratio (PSRR)
80dB
Propagation Delay
60us
Quiescent Current
710nA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
60us
RoHS Compliant
Yes
Supply Current
300nA
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC1540IDD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1540IDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

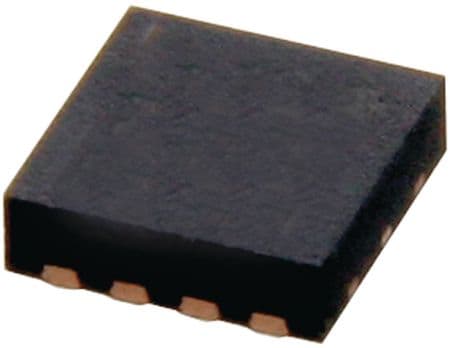

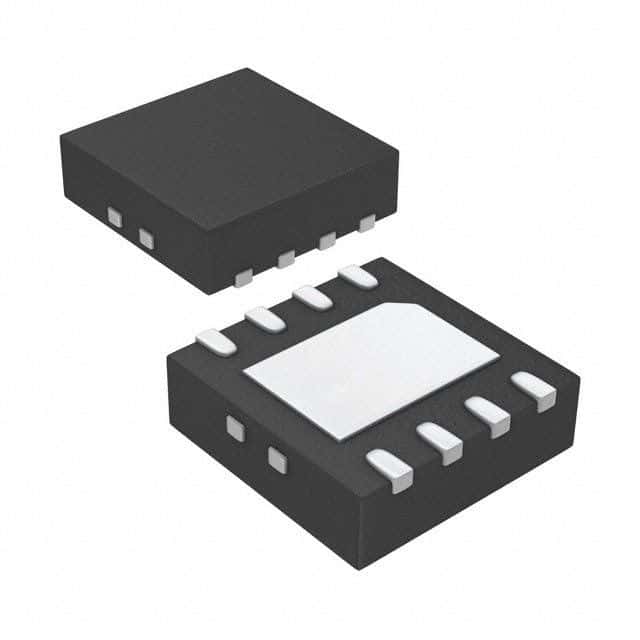

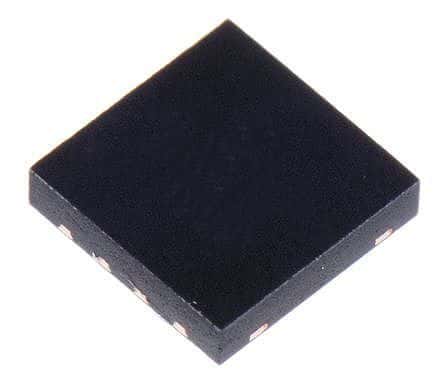

Product Images
