Surface mount transceiver IC featuring serial interface and software selectable logic. This component offers 4 drivers and 4 receivers, operating from a 4.75V to 5.25V supply voltage with a maximum supply current of 120mA. Designed for a temperature range of -40°C to 85°C, it is packaged in a 28-pin SSOP with dimensions of 10.33mm length, 5.38mm width, and 1.99mm height. This RoHS compliant device is suitable for bus transceiver applications.
PackageSSOP
Current120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC1544IG#PBF technical specifications.
General
| Package/Case | SSOP |
| ESD Protection | No |
| Height | 1.99mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 10.33mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 120mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Number of Transceivers | 1 |
| Number of Transmitters | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 120mA |
| Width | 5.38mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC1544IG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1544IG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

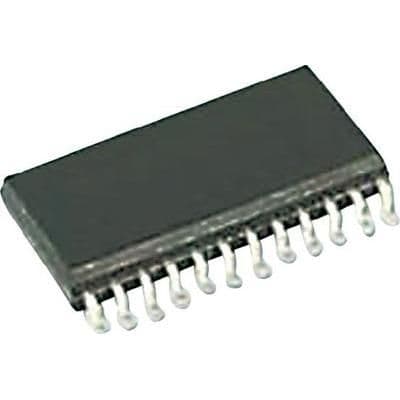

Product Images
