Low Pass Filter IC, featuring an Active RC filter design. This dual-channel component operates with a dual supply voltage range of 1.35V to 5V, and a single supply range of 2.7V to 11V. Packaged in a 16-pin SSOP with dimensions of 4.98mm (L) x 3.988mm (W) x 1.5mm (H), it supports surface mounting. The device offers a nominal supply current of 15mA and operates within a temperature range of 0°C to 70°C. It is RoHS compliant and lead-free.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC1563-2CGN#PBF technical specifications.
General
| Package/Case | SSOP |
| Dual Supply Voltage | 3V |
| Filter Type | LOW PASS FILTER |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 4.98mm |
| Max Dual Supply Voltage | 5V |
| Min Dual Supply Voltage | 1.35V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 11V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 15mA |
| Number of Circuits | 2 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Type | Active |
| Width | 3.988mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC1563-2CGN#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1563-2CGN#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

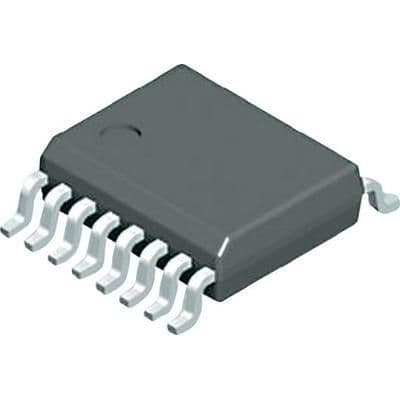

Product Images
