16-bit, 1-channel Digital-to-Analog Converter (DAC) featuring a parallel interface. This general-purpose DAC offers a 2LSB Integral Nonlinearity (INL) and a full-scale error of 24LSB. Operating from a single 4.5V to 5.5V supply, it consumes a low 10µA supply current. The component is housed in a 28-pin SSOP package suitable for surface mounting, with a settling time of 1µs.
PackageSSOP
Current10uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC1597-1BCG#PBF technical specifications.
General
Package/Case
SSOP
Converter Type
GENERAL PURPOSE
Full Scale Error
24LSB
Height
-0.05mm
Integral Nonlinearity (INL)
2LSB
Interface
Parallel
Lead Free
Lead Free
Length
10.5mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Package Quantity
47
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Settling Time
1us
Supply Current
10uA
Supply Type
Single
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC1597-1BCG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1597-1BCG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

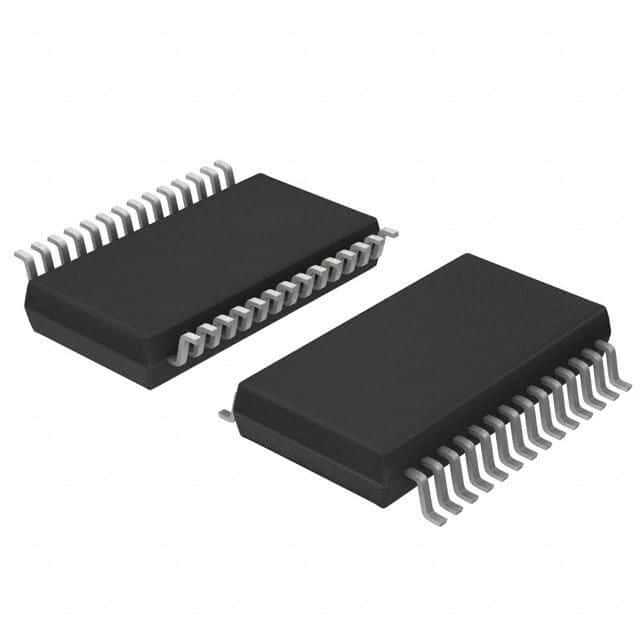

Product Images
