16-bit, single-channel Analog-to-Digital Converter (ADC) with a 250 kSPS sampling rate and parallel interface. Features a 36-pin SSOP package for surface mounting. Operates with a dual supply voltage range of 4.75V to 5.25V, offering 3 LSB integral nonlinearity. This RoHS compliant component has a maximum power dissipation of 350mW and an operating temperature range of 0°C to 70°C.
PackageSSOP
Current18mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC1603CG#PBF technical specifications.
General
| Package/Case | SSOP |
| Dual Supply Voltage | 5V |
| Integral Nonlinearity (INL) | 3LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 5.25V |
| Min Dual Supply Voltage | 4.75V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 350mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 350mW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 250KS/s |
| Supply Current | 18mA |
| Supply Type | Dual, Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC1603CG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1603CG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

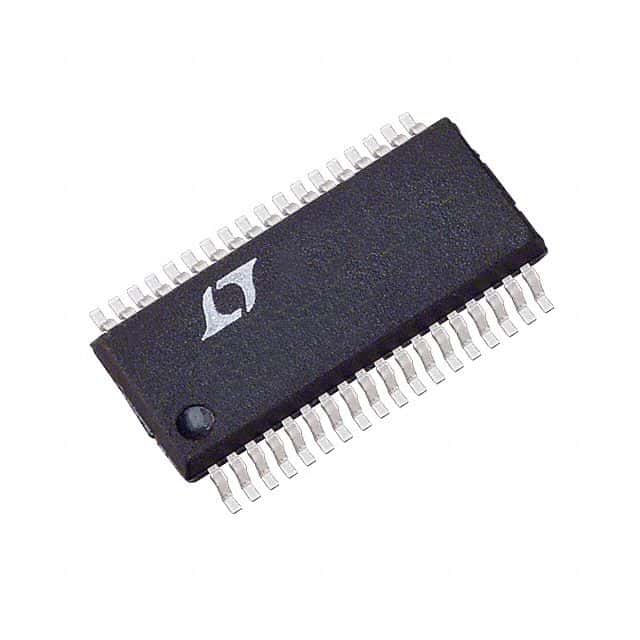

Product Images
