16-bit, 1-channel digital-to-analog converter (DAC) with a 50MS/s conversion rate. Features bipolar/unipolar output polarity, 2.5V reference voltage, and 20ns settling time. Operates with a dual 5V supply (4.75V to 5.25V) and offers 8LSB integral nonlinearity and 4LSB full-scale error. Packaged in a 28-pin SSOP for surface mounting, this RoHS compliant component is suitable for automotive applications.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC1668CG#PBF technical specifications.
General
Package/Case
SSOP
Conversion Rate
50MS/s
Dual Supply Voltage
5V
Full Scale Error
4LSB
Height
1.78mm
Integral Nonlinearity (INL)
8LSB
Interface
Parallel
Lead Free
Lead Free
Length
10.33mm
Max Dual Supply Voltage
5.25V
Min Dual Supply Voltage
4.75V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Output Polarity
Bipolar, Unipolar
Package Quantity
47
Packaging
Rail/Tube
Reach SVHC Compliant
No
Reference Voltage
2.5V
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
50000000S/s
Settling Time
20ns
Supply Type
Dual
Width
5.38mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC1668CG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1668CG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

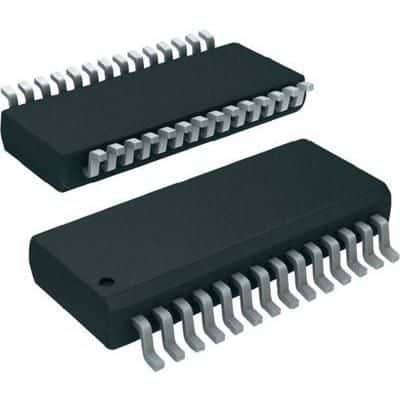

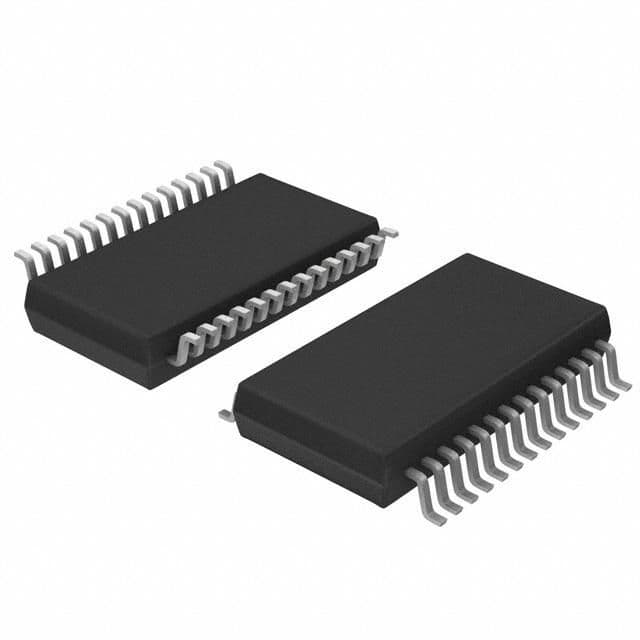

Product Images
