Dual battery management IC in a 48-pin TSSOP package. Features a maximum input voltage of 28V and a minimum input voltage of 6V, with a maximum supply voltage of 28V. Supports a maximum charge current of 4A and an output current of 4A. Operates across a temperature range of -40°C to 125°C. This component is RoHS compliant.
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices LTC1760IFW#PBF technical specifications.
General
| Package/Case | TSSOP |
| Max Charge Current | 4A |
| Max Input Voltage | 28V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 0V |
| Output Current | 4A |
| Package Quantity | 39 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC1760IFW#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1760IFW#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

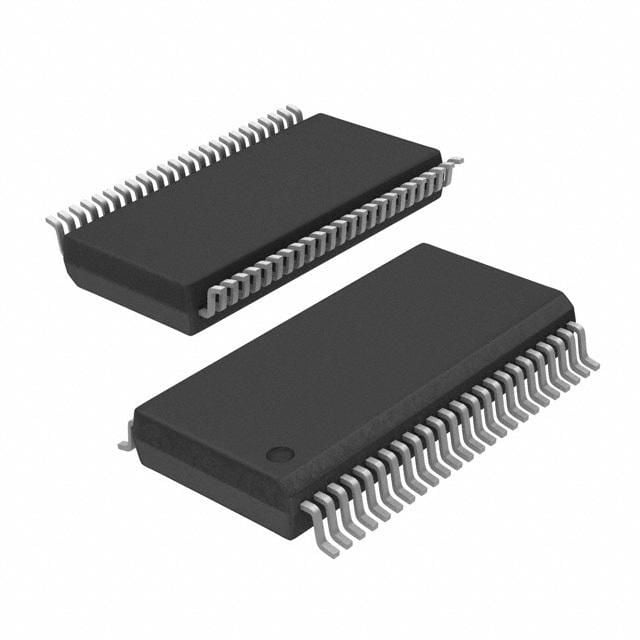

Product Images
