Analog Devices
LTC1871HMS#PBF
DC/DC Cntrlr Single-OUT Flyback/Step Up 1000kHz Automotive 10-Pin MSOP Tube
Frequency1MHz
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC1871HMS#PBF technical specifications.
General
| Package/Case | MSOP |
| Duty Cycle | 97% |
| Fall Time | 8ns |
| Height | 0.86mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Duty Cycle | 97% |
| Max Frequency | 1MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Number of Outputs | 1 |
| Output Current | 50mA |
| Output Voltage | 7V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost, Flyback, SEPIC |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC1871HMS#PBF Datasheet
Download the complete datasheet for Analog Devices LTC1871HMS#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

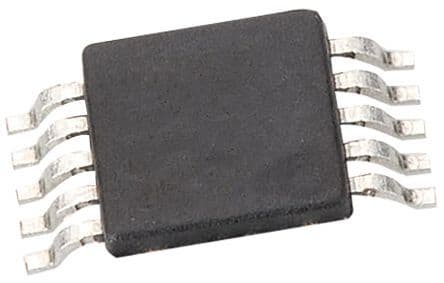

Product Images
