Technical Specifications
Analog Devices LTC2158IUP-14#PBF technical specifications.
General
| Package/Case | QFN |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 7.5LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.9V |
| Mount | Surface Mount |
| Nominal Supply Current | 355mA |
| Number of A/D Converters | 2 |
| Number of Bits | 14 |
| Number of Elements | 2 |
| Number of Inputs | 2 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 310000000S/s |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2158IUP-14#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2158IUP-14#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

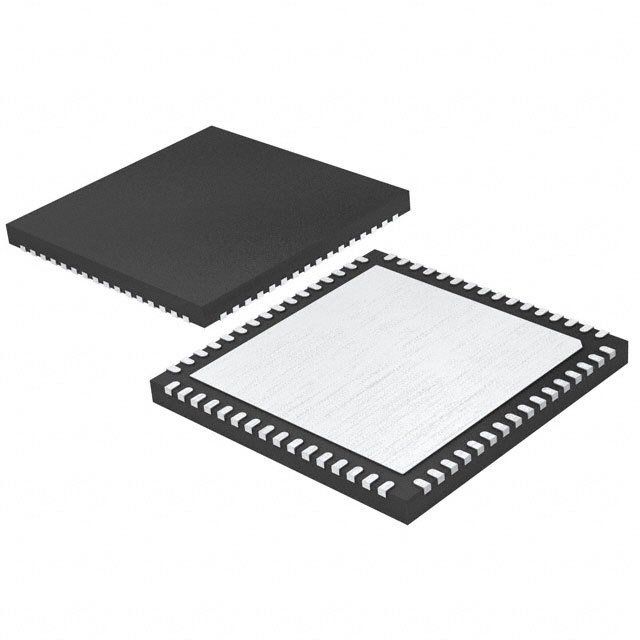

Product Images
