Quad 14-bit Analog-to-Digital Converter (ADC) featuring a 125MS/s sampling rate. This surface-mount device offers 4 channels with bipolar polarity and a 1.8V operating supply voltage, accepting a range of 1.7V to 1.9V. Interfaces include LVDS, Serial, and SPI, with an Integral Nonlinearity (INL) of 4.1LSB. Packaged in QFN, it operates from 0°C to 70°C with a maximum power dissipation of 646mW.
PackageQFN
Current283mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2175CUKG-14#PBF technical specifications.
General
| Package/Case | QFN |
| Integral Nonlinearity (INL) | 4.1LSB |
| Interface | LVDS, Serial, SPI |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 646mW |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Bits | 14 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Number of Elements | 4 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 646mW |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 125MS/s |
| Supply Current | 283mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2175CUKG-14#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2175CUKG-14#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

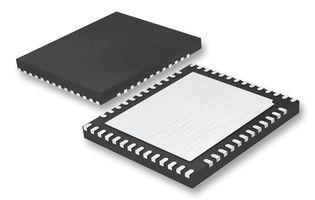

Product Images
