16-bit dual-channel analog-to-digital converter (ADC) with a sampling rate of 105 MSPS. Features a 7.5 LSB integral nonlinearity and bipolar polarity. Operates from a single 1.7V to 1.9V supply voltage. Interface options include parallel and serial. Packaged in a 64-pin QFN for surface mounting. RoHS compliant and lead-free.
PackageQFN
MountingSurface Mount
PolarityBipolar
Power500mW
Quick Jump:
Technical Specifications
Analog Devices LTC2184IUP#PBF technical specifications.
General
Package/Case
QFN
Integral Nonlinearity (INL)
7.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Bits
16
Number of Converters
2
Number of Elements
2
Operating Supply Voltage
1.8V
Package Quantity
40
Packaging
Rail/Tube
Polarity
Bipolar
Power Dissipation
500mW
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
105000000S/s
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2184IUP#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2184IUP#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

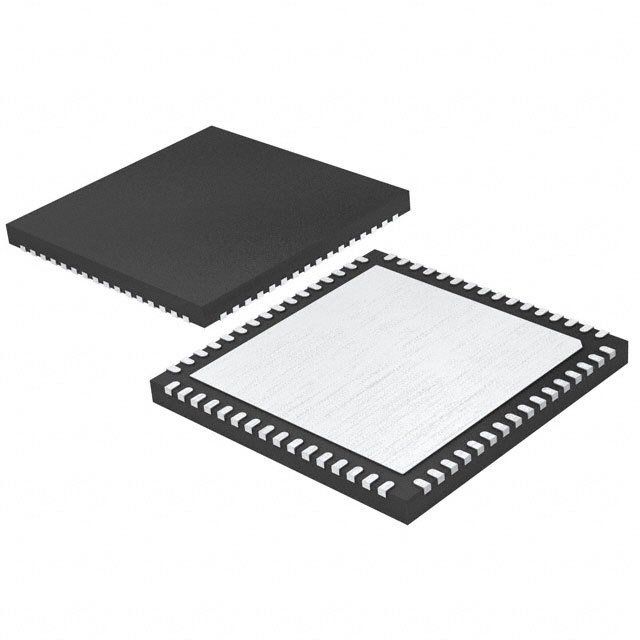

Product Images
