Analog Devices
LTC2190CUKG#PBF
LINEAR TECHNOLOGY LTC2190CUKG#PBF Analogue to Digital Converter, Dual, 16 bit, 25 MSPS, QFN
PackageQFN
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2190CUKG#PBF technical specifications.
General
Package/Case
QFN
Integral Nonlinearity (INL)
6LSB
Interface
LVDS, Serial, Parallel
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
186mW
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Bits
16
Number of Converters
2
Number of Elements
2
Operating Supply Voltage
1.8V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Bipolar
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
25MS/s
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2190CUKG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2190CUKG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

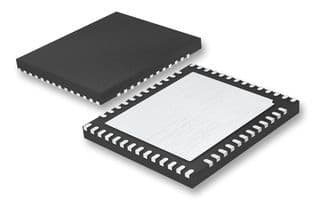

Product Images
