16-bit, 105 MSPS dual analog-to-digital converter (ADC) featuring LVDS and Serial SPI interfaces. This single-channel device operates with a supply voltage range of 1.7V to 1.9V, consuming 185mA at 1.8V. It offers an integral nonlinearity of 7.5 LSB and supports bipolar polarity. Packaged in a QFN surface-mount format, this RoHS-compliant component has a maximum power dissipation of 457mW and an operating temperature range of -40°C to 85°C.
PackageQFN
Current185mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2194IUKG#PBF technical specifications.
General
| Package/Case | QFN |
| Integral Nonlinearity (INL) | 7.5LSB |
| Interface | LVDS, Serial, SPI |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 457mW |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 457mW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 105MS/s |
| Supply Current | 185mA |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2194IUKG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2194IUKG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

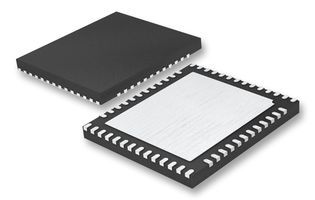

Product Images
