16-bit, 10 MSPS Analog-to-Digital Converter (ADC) featuring a single channel and bipolar polarity. This surface-mount QFN package device operates with a 3.3V single supply voltage, ranging from 3.135V to 3.465V. Integral Nonlinearity (INL) is specified at 4.5 LSB, with a maximum power dissipation of 165mW. The interface is parallel, and the component is RoHS compliant.
PackageQFN
MountingSurface Mount
PolarityBipolar
Power165mW
Quick Jump:
Technical Specifications
Analog Devices LTC2202IUK#PBF technical specifications.
General
Package/Case
QFN
Integral Nonlinearity (INL)
4.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
165mW
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Bits
16
Number of Converters
1
Number of Elements
1
Operating Supply Voltage
3.3V
Package Quantity
52
Packaging
Rail/Tube
Polarity
Bipolar
Power Dissipation
165mW
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
10MS/s
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2202IUK#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2202IUK#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

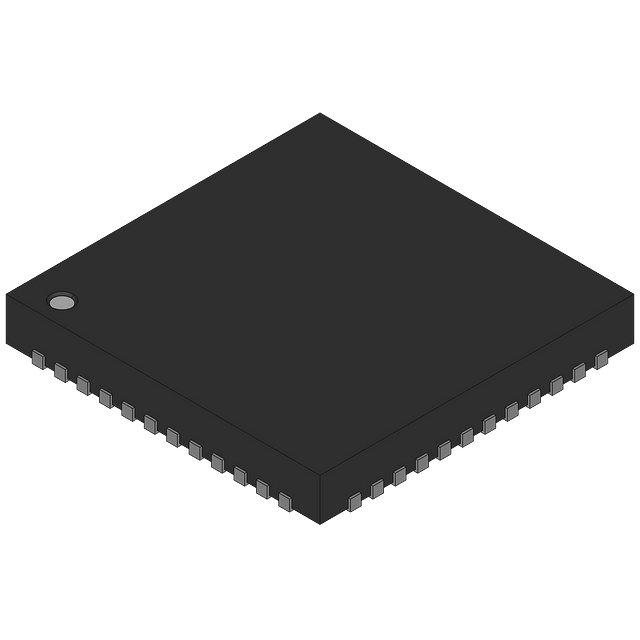

Product Images
