16-bit, 130MSPS pipelined analog-to-digital converter (ADC) featuring a single differential input. This surface-mount component offers parallel and LVDS interfaces, with a bipolar input polarity. Operating from a 3.3V supply, it boasts an integral nonlinearity of 4.5 LSB and a maximum power dissipation of 1.782W. The QFN package measures 9mm x 9mm x 0.75mm.
PackageQFN
MountingSurface Mount
PolarityBipolar
Power1.782W
Quick Jump:
Technical Specifications
Analog Devices LTC2208IUP#PBF technical specifications.
General
| Package/Case | QFN |
| Height | 0.75mm |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 4.5LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Nominal Supply Current | 380mA |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 1.782W |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 130000000S/s |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2208IUP#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2208IUP#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

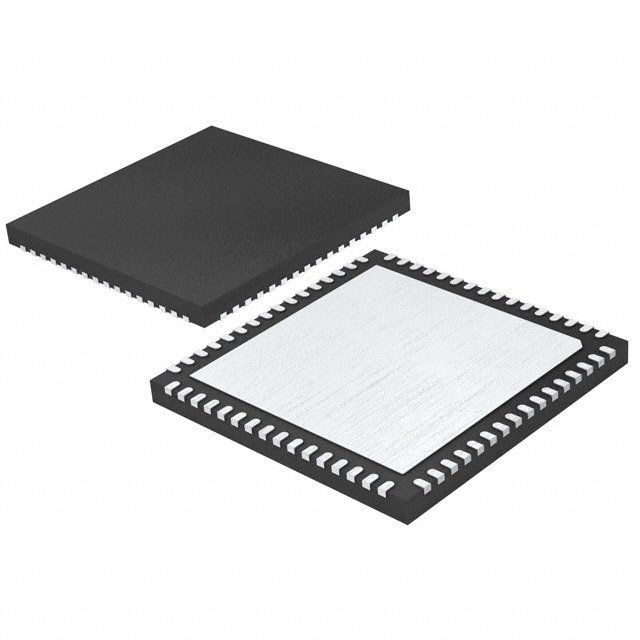

Product Images
