10-bit, 170MS/s Analog-to-Digital Converter (ADC) with a parallel interface. Features 1LSB Integral Nonlinearity (INL) and bipolar polarity. Operates from a single 3.1V to 3.5V supply, with a typical supply current of 264mA. Packaged in a 64-QFN for surface mounting, this RoHS compliant component has a maximum power dissipation of 1.18W and an operating temperature range of -40°C to 85°C.
PackageQFN
Current264mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2230IUP#PBF technical specifications.
General
| Package/Case | QFN |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.18W |
| Max Supply Voltage | 3.5V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 1.175W |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 170MS/s |
| Supply Current | 264mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2230IUP#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2230IUP#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

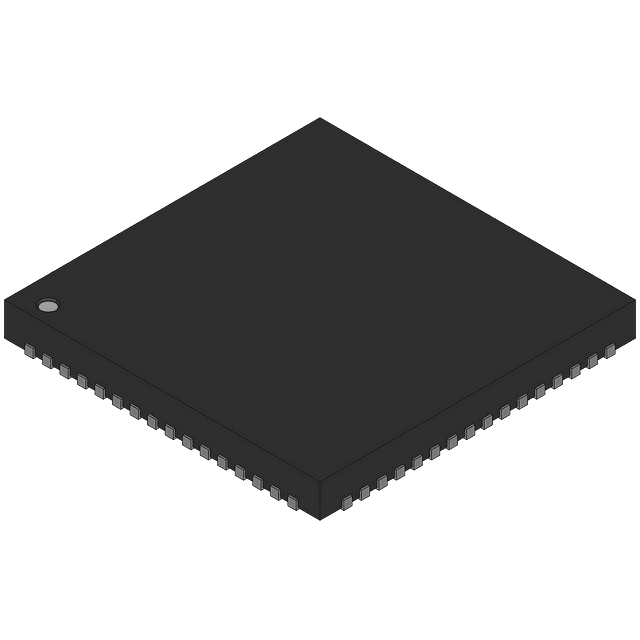

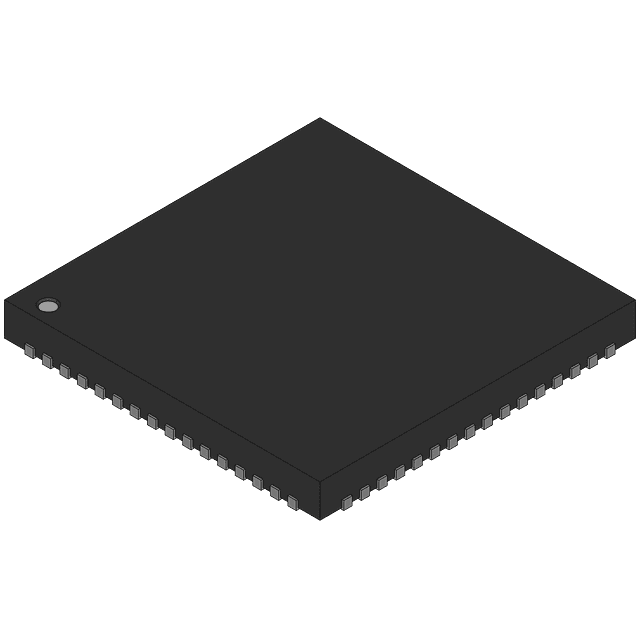

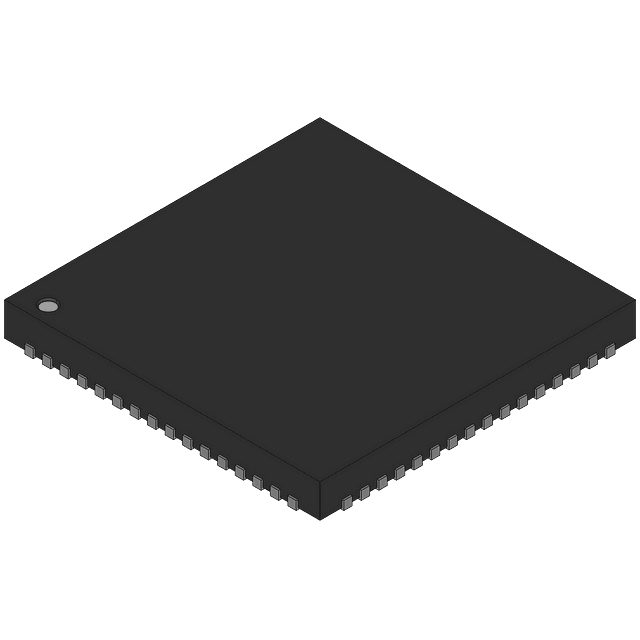

Product Images
