Analog Devices
LTC2255IUH
ADC, Proprietary Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PQCC32
PackageQFN
MountingSurface Mount
PolarityBipolar
Power468mW
Quick Jump:
Technical Specifications
Analog Devices LTC2255IUH technical specifications.
General
Package/Case
QFN
Integral Nonlinearity (INL)
5LSB
Interface
Parallel
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.4V
Min Supply Voltage
2.85V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
14
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
3V
Polarity
Bipolar
Power Dissipation
468mW
Resolution
14b
RoHS Compliant
No
Sampling Rate
125000000S/s
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices LTC2255IUH Datasheet
Download the complete datasheet for Analog Devices LTC2255IUH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

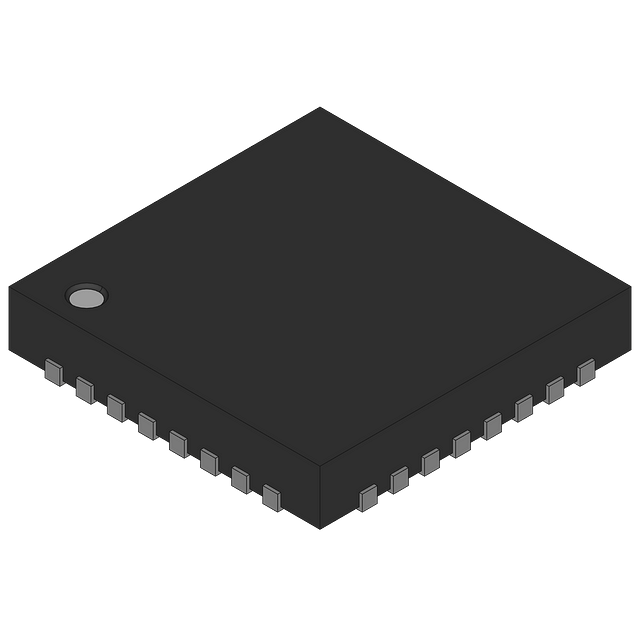

Product Images
