12-bit, 500 kSPS Analog-to-Digital Converter (ADC) with 1 LSB Integral Nonlinearity. Features SPI serial interface and bipolar/unipolar polarity. Operates from a single 5V supply (4.75V to 5.25V) with a maximum power dissipation of 17.5mW. Packaged in a 24-lead QFN EP for surface mounting, supplied on tape and reel. RoHS compliant, suitable for operation between -40°C and 85°C.
PackageQFN EP
MountingSurface Mount
PolarityBipolar, Unipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2308IUF#TRPBF technical specifications.
General
Package/Case
QFN EP
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
17.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
12
Number of Converters
1
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Bipolar, Unipolar
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
500000S/s
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2308IUF#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC2308IUF#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

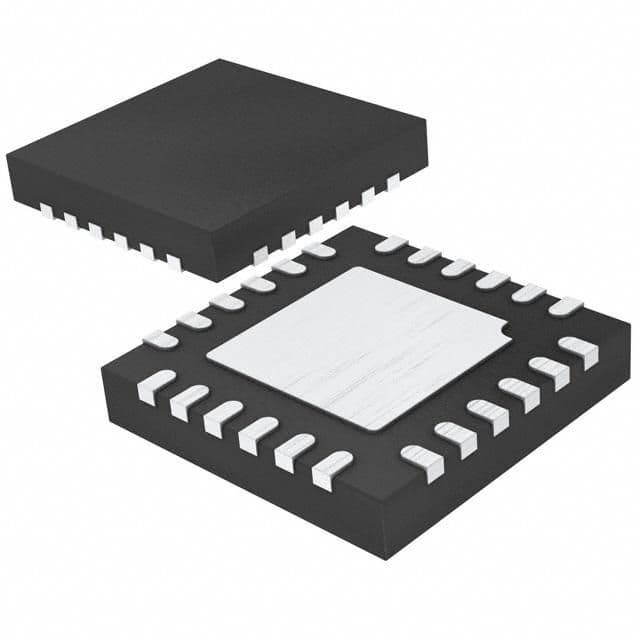

Product Images
