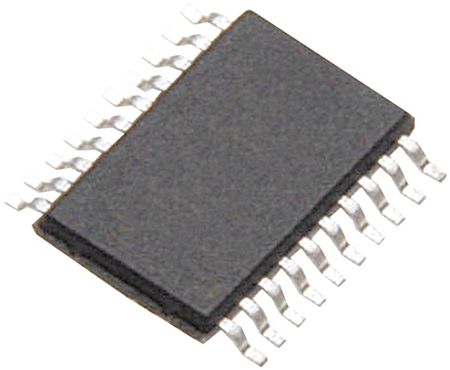

12-bit, 1-channel SAR Analog-to-Digital Converter (ADC) with 1LSB Integral Nonlinearity. Features I2C and Serial interface, operating from a single 5V supply with a 2.5V reference voltage. Surface mountable in a 20-TSSOP package, this RoHS compliant component offers bipolar and unipolar operation with a maximum sampling rate of 14000S/s. Designed for a wide temperature range of -40°C to 85°C, with a maximum power dissipation of 15mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LTC2309IF#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices LTC2309IF#PBF technical specifications.
| Package/Case | TSSOP |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 15mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Power Dissipation | 15mW |
| Power Supply | 5V |
| Reference Voltage | 2.5V |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 14000S/s |
| Supply Type | Single |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices LTC2309IF#PBF to view detailed technical specifications.
