Analog Devices
LTC2314CTS8-14#TRMPBF
14-Bit SPI Analog-to-Digital Converter, 4.25LSB INL, 4500000S/s Sampling Rate
The LTC2314CTS8-14#TRMPBF is a 14-bit analog-to-digital converter with a sampling rate of 4500000 samples per second. It features an integral nonlinearity of 4.25 least significant bits and operates over a temperature range of 0°C to 70°C. This device is available in a lead-free TSOT package and is suitable for surface mount applications. The LTC2314CTS8-14#TRMPBF is RoHS compliant and has a power dissipation of 36 milliwatts.
PackageTSOT
Current6.2mA
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2314CTS8-14#TRMPBF technical specifications.
General
| Package/Case | TSOT |
| Integral Nonlinearity (INL) | 4.25LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 14 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Dissipation | 36mW |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 4500000S/s |
| Supply Current | 6.2mA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2314CTS8-14#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC2314CTS8-14#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

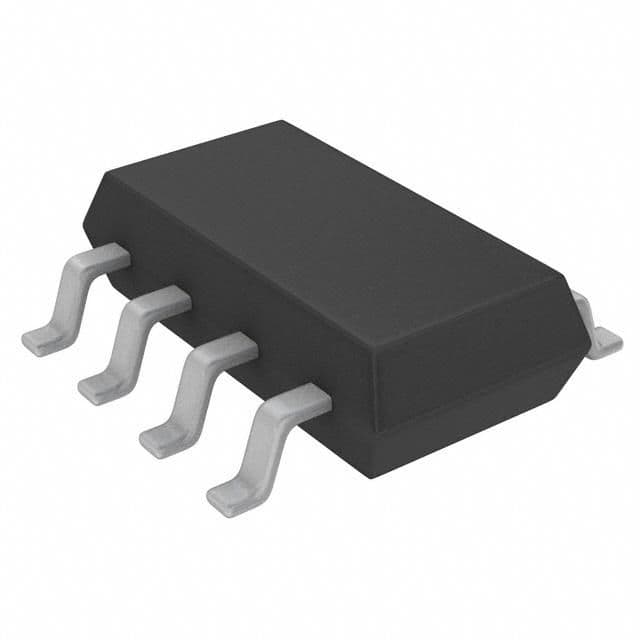

Product Images
