12-bit, 1-channel SAR Analog-to-Digital Converter (ADC) with a 5Msps sampling rate. Features SPI serial interface, unipolar polarity, and a 1.5LSB integral nonlinearity. Operates from a 2.7V to 5.25V supply range and is housed in an 8-pin TSOT-23 surface mount package. Ideal for automotive applications with a temperature range of 0°C to 70°C.
PackageTSOT
Current6.4mA
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2315CTS8-12#TRMPBF technical specifications.
General
| Package/Case | TSOT |
| Integral Nonlinearity (INL) | 1.5LSB |
| Interface | SPI |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Dissipation | 37.5mW |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 5000000S/s |
| Supply Current | 6.4mA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2315CTS8-12#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC2315CTS8-12#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

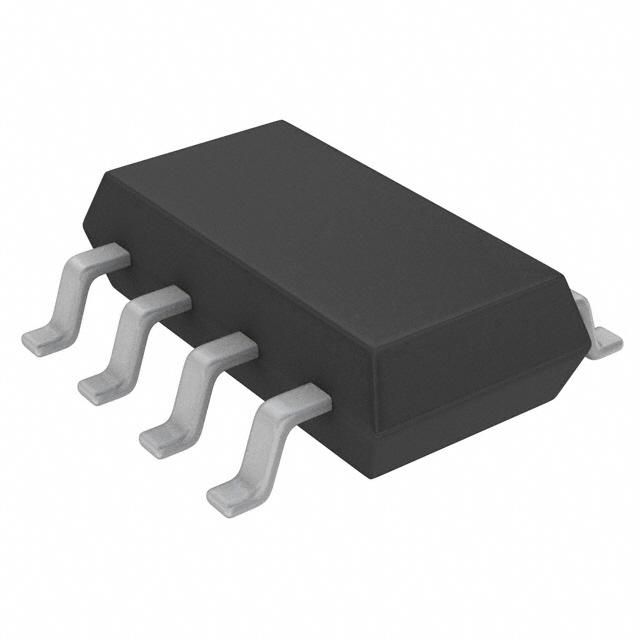

Product Images
