16-bit dual-channel Analog-to-Digital Converter (ADC) with a 5 MSPS sampling rate. Features LVDS and Serial SPI interfaces, operating from a 4.75V to 5.25V supply. Housed in a 28-pin QFN package, this lead-free component offers a wide operating temperature range of -40°C to 85°C.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC2323IUFD-16#PBF technical specifications.
General
Package/Case
QFN
Interface
LVDS, Serial, SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
2
Number of Bits
16
Number of Inputs
2
Package Quantity
73
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
5000000S/s
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2323IUFD-16#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2323IUFD-16#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

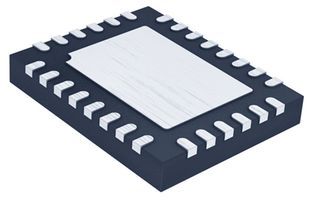

Product Images
