18-bit, 500 kSPS Analog-to-Digital Converter (ADC) featuring a single differential input. This surface-mount IC offers a 4 LSB Integral Nonlinearity (INL) and operates from a 4.75V to 5.25V supply. The SPI interface facilitates data transfer, and the component is housed in a 16-MSOP package. Designed for bipolar operation, it has a nominal supply current of 7mA and a maximum power dissipation of 42.5mW.
PackageMSOP
MountingSurface Mount
PolarityBipolar
Power42.5mW
Quick Jump:
Technical Specifications
Analog Devices LTC2337CMS-18#TRPBF technical specifications.
General
| Package/Case | MSOP |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | SPI |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Nominal Supply Current | 7mA |
| Number of A/D Converters | 1 |
| Number of Bits | 18 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Dissipation | 42.5mW |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 500000S/s |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2337CMS-18#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC2337CMS-18#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

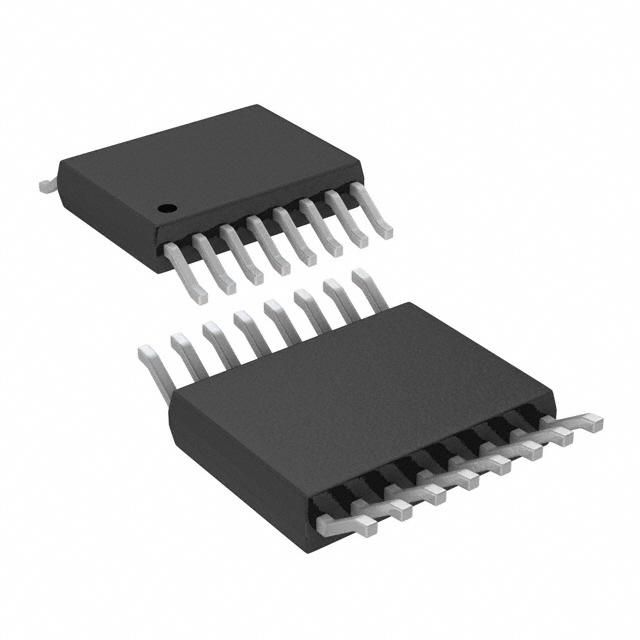

Product Images
