The LTC2338CMS-18#TRPBF is an 18-bit single-channel analog-to-digital converter with a SPI interface, capable of operating at a sampling rate of 1 MSPS. It is available in a TFSOP package and is suitable for surface mount applications. The device is RoHS compliant and can operate over a temperature range of 0°C to 70°C. It has a nominal supply current of 10mA and is suitable for use in a variety of applications.
PackageTFSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2338CMS-18#TRPBF technical specifications.
General
| Package/Case | TFSOP |
| Input Type | DIFFERENTIAL |
| Interface | SPI |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Nominal Supply Current | 10mA |
| Number of A/D Converters | 1 |
| Number of Bits | 18 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Sampling Rate | 1000000S/s |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2338CMS-18#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC2338CMS-18#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

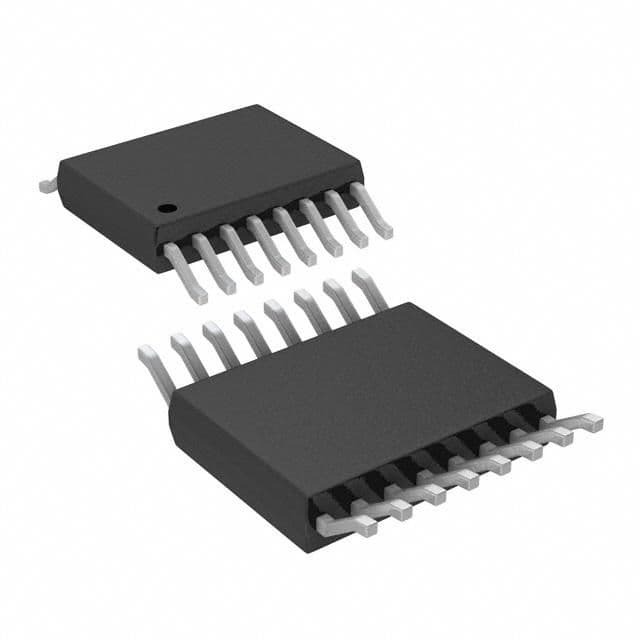

Product Images
