14-bit, 3.5MS/s Analog-to-Digital Converter (ADC) with a single unipolar input. Features SPI serial interface and a 10-pin MSOP package for surface mounting. Operates from a single 3.1V to 3.6V supply with a typical 3.3V operating voltage. Offers 4LSB integral nonlinearity and a maximum power dissipation of 18mW. RoHS compliant and lead-free.
PackageSOP
Current5.5mA
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2355CMSE-14#PBF technical specifications.
General
| Package/Case | SOP |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 18mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Number of Bits | 14 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 3.5MS/s |
| Supply Current | 5.5mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2355CMSE-14#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2355CMSE-14#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

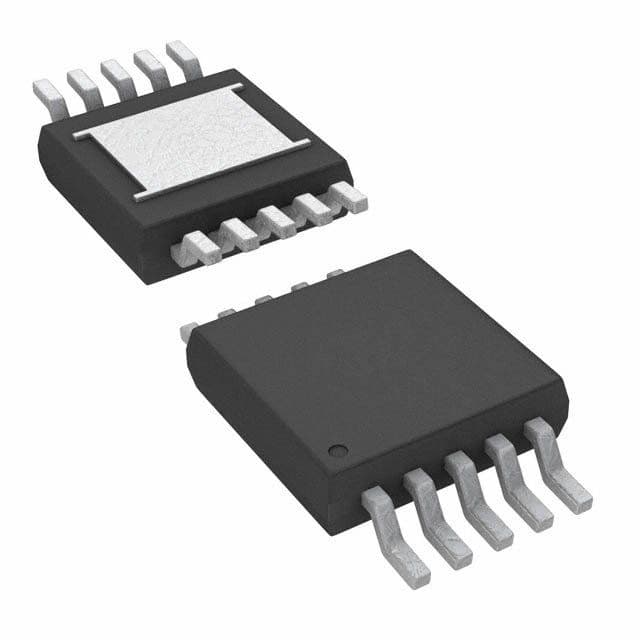

Product Images
