14-bit, single-channel analog-to-digital converter (ADC) with a 3.5 MS/s sampling rate. Features SPI serial interface, 4 LSB integral nonlinearity, and unipolar operation. Operates from a 3.1V to 3.6V single supply voltage with a nominal supply current of 5.5mA. Packaged in a 10-pin MSOP for surface mounting, this RoHS compliant component offers a maximum power dissipation of 18mW and an operating temperature range of -40°C to 85°C.
PackageMSOP
MountingSurface Mount
PolarityUnipolar
Power100mW
Quick Jump:
Technical Specifications
Analog Devices LTC2355IMSE-14#PBF technical specifications.
General
| Package/Case | MSOP |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 18mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Nominal Supply Current | 5.5mA |
| Number of Bits | 14 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 3.5MS/s |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2355IMSE-14#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2355IMSE-14#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

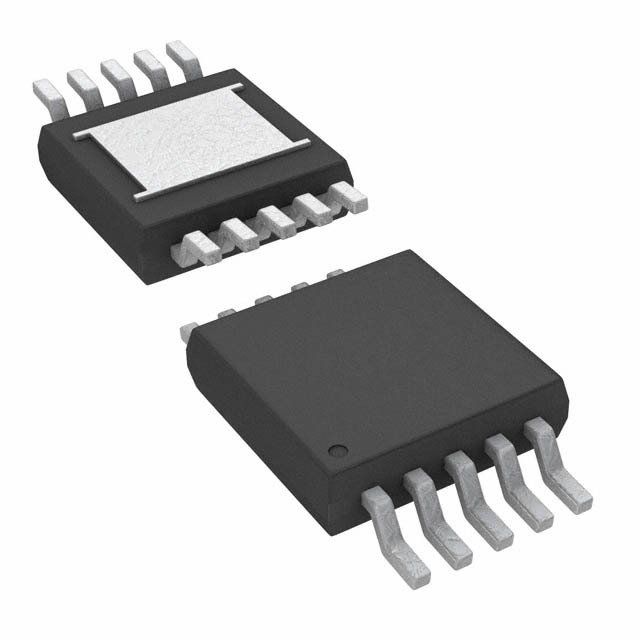

Product Images
