ADC, 16BIT, 2MSPS, MSOP-16
PackageMSOP
Current7.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2380CMS-16#PBF technical specifications.
General
| Package/Case | MSOP |
| Height | 0.86mm |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 0.6LSB |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 4.04mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 2MS/s |
| Supply Current | 7.5mA |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2380CMS-16#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2380CMS-16#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

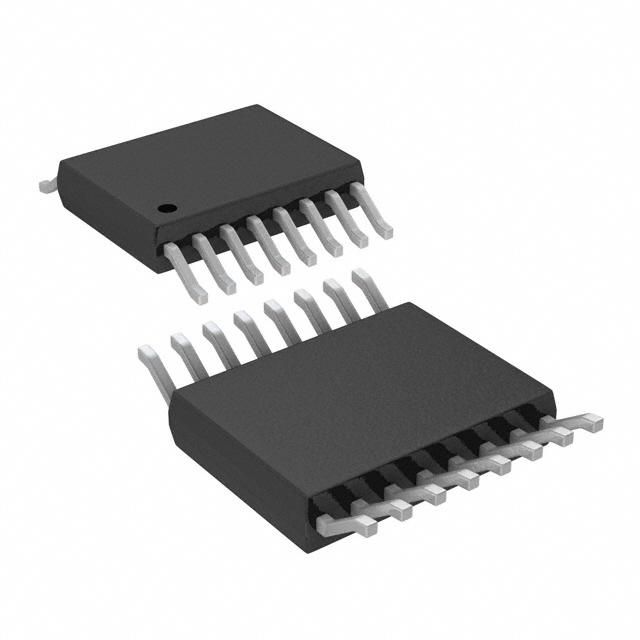

Product Images
