24-bit, 8-channel Analog-to-Digital Converter (ADC) with a unipolar, single supply voltage range of 2.7V to 5.5V. Features 1LSB differential nonlinearity and an SPI serial interface. This surface mount component operates from 0°C to 70°C and is packaged in a 28-pin SSOP.
PackageSSOP
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2408CG#PBF technical specifications.
General
Package/Case
SSOP
Differential Nonlinearity
1LSB
Height
2mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
10.5mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
200uA
Number of A/D Converters
8
Number of Analog Inputs
8
Number of Bits
24
Number of Converters
1
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
47
Packaging
Rail/Tube
Polarity
Unipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
0.008KS/s
Supply Type
Single
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2408CG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2408CG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

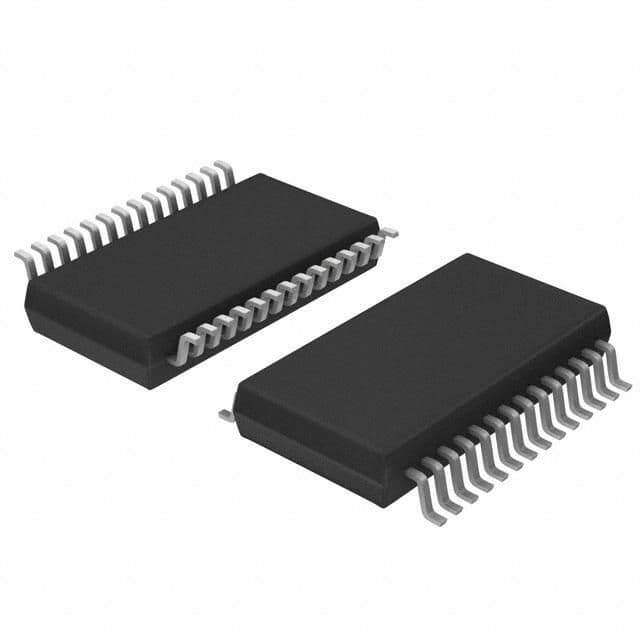

Product Images
